ST-900

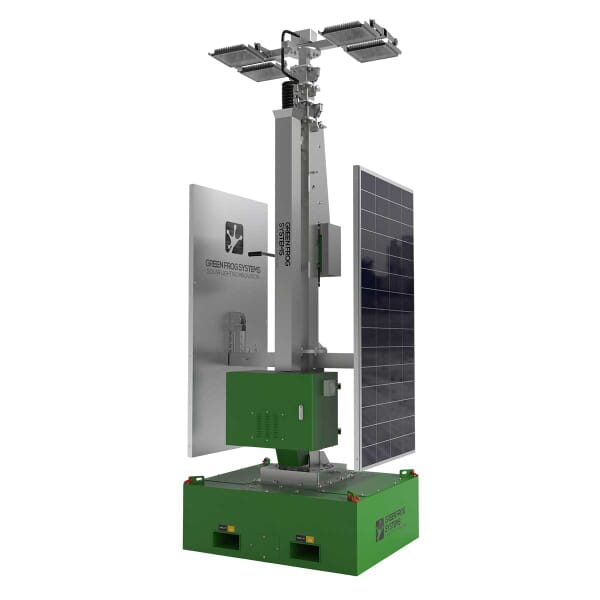

Mobile Solar Flood Light Tower

Description

data sheetDownload ST 900 PDF

Introducing the ST900 Solar Trailer. Designed to provide reliable and efficient power, the ST-900 is perfect for a variety of applications, from construction sites to outdoor events.

The ST-900 Solar Trailer is the ideal solution for those seeking a portable, efficient, and powerful solar power source. Whether you need lighting for a remote worksite or backup power for an event, the ST-900 has you covered.

Key Features

  • High-Efficiency Solar Panels: Equipped with two 450W mono-crystalline solar panels.. The panels can be rotated 340° horizontally and feature an electric fold/unfold mechanism for easy setup and storage.
  • Versatile Charging Options: The ST-900 supports both solar and AC charging. It typically takes 7 hours to fully charge using solar power and 31-58 hours using AC power.
  • Powerful LED Lighting: The trailer can be fitted with up to four 116W LED lights, providing up to 91,332 lumens of illumination. The lights are dimmable and adjustable, ensuring optimal lighting for any situation.
  • Robust Construction: Built with hot-dip galvanized steel, the ST-900 is designed to withstand harsh environments. It features a telescopic mast that can be adjusted from 2 to 9 meters and can handle wind speeds up to 118 km/h with outriggers deployed.
  • Advanced Battery System: The ST-900 uses LiFePO4 batteries with integrated BMS, available in capacities ranging from 5KW to 10KW. This ensures long-lasting and reliable power storage
  • User-Friendly Design: The trailer is easy to set up and operate, with a one-person solar setup using the electric unfold system. It also includes a control panel for light, solar panel, and mast adjustments

Technical data

Part NumberGFS-ST-900
Solar Specifications
Panel Rotation Angle340° Horizontal (manual)
Panel2 x 450W Mono (900W total)
Panel Folding MechanismElectric fold/unfold/storage
Solar ControllerGreen Frog Systems
Charging ModeSolar charging / AC charging
Solar Charging Time7 hours (typical)
AC ChargingTrickle Charge 9-24 hours
Setup1 person solar setup using electric unfold system
FootprintClass leading 900W in small footprint trailer
LED Specifications
LED Quantity2, 4
LED Power116W each (up to 464W)
Lumens (Luminaire 2-4)45,666, 91,332
Lumens/W (Luminaire)197.7
CCT3000
Light Coverage90ft (30M) of 360° coverage at 1FC average (10.76lux), 40ft (30M) of 360° coverage at 20FC average (215lux)
FeaturesDimmable 0-10V, Adjustable angle, Suits many 24VDC or AC Luminaire, Floodlight or street light options
Battery and Storage
Battery TypeLiFeP04 with BMS (2-4 batteries)
Battery Specifications51.2V 100AH (5120Wh) – 5KW 51.2V 200AH (10240Wh) – 10KW
Max Sustained LoadSolar yield to determine optimum Load profile 5-500W
System Voltage51V / 24VDC low voltage system
